Custom Timing Belts: What to Know Before Ordering Custom Length, Profile and Color
A practical pre-ordering guide for OEMs and maintenance teams specifying custom timing belts
A stock catalog belt solves maybe seventy percent of drive problems. The remaining thirty percent — odd centre distances, special coatings, colored backings for cleanrooms, teeth machined into the back — is where custom timing belts earn their keep. But customization multiplies the ways an order can go wrong: a length specified on the outer surface instead of the pitch line, a profile assumed to match the installed pulley, a backing that violates food-contact rules. This guide walks through every decision you should settle before you send an RFQ to a custom timing belt manufacturer, so the belt that arrives is the belt you meant to buy.
Custom Timing Belt vs Standard Timing Belt: When Customization Pays Off
Standard belts win on price, availability and interchangeability, so start there. But forcing a standard belt into a non-standard drive usually costs more than it saves. Customization pays off in these situations:
- Non-standard centre distance. If your drive needs a pitch length that sits between two catalog sizes, a custom length timing belt avoids the compromises of an over-tensioned or under-tensioned loop.
- Product-contact or friction surfaces. When the belt itself carries, positions or brakes product, you need a bonded backing — rubber, sponge, PU foam or silicone — moulded onto the tooth belt.
- Machined features. V-guides, cleats, holes, slots and profiled teeth machined into the belt back turn a pure transmission belt into a functional machine component.
- Identification and hygiene rules. Colored belts separate production lines and make foreign-object detection easier in food and ph plants.
- Legacy machines. Discontinued sizes on installed equipment are cheaper to remake than to re-engineer.
If your drive is a pure transmission with a common pitch, a catalog belt is almost always the right answer — our standard timing belt range covers the common families. For everything else, read on.
Custom Length Timing Belt Options: Endless, Open-Ended and Cut-to-Length
Custom length is the most requested customization, and there are three construction routes, each with different tolerances and trade-offs:
| Construction | How it is made | Length accuracy | Best for |
|---|---|---|---|
| Endless moulded | Moulded as a closed loop in custom moulds | High (mould-controlled) | High-speed drives, positioning axes, volume production |
| Endless vulcanized / spliced | Cut from open belt, tooth ends prepared and joined | Good (joint-dependent) | Long pitches, non-standard lengths, fast delivery |
| Open-ended / cut-to-length | Supplied by the metre or cut to your dimension | By your splicing method | Linear drives, gantries, on-site splicing |
Two specification traps cause most custom length claims. First, always specify pitch length, not outer length — the pitch line runs through the tension cords, and outer-surface measurements shift with tooth profile. Our size and dimension guide shows how to read and measure it. Second, state the cord material: Kevlar, glass and steel cords stretch differently, and a length that is perfect in glass may run loose in steel. For the construction types in detail, see our endless vs open-ended comparison.
Custom Timing Belt Tooth Profiles and Backing Modifications
Length is only half of a custom specification. The tooth side and the back side each carry their own options:
- Tooth profile: HTD, GT2, T, AT and imperial families can all be moulded to custom pitch lengths — the profile must still match your pulleys exactly (see our profile and pitch guide).
- Backings: rubber (high friction), sponge / PU foam (gentle product handling), silicone (heat and food contact) bonded to the belt back in 1-10 mm thicknesses.

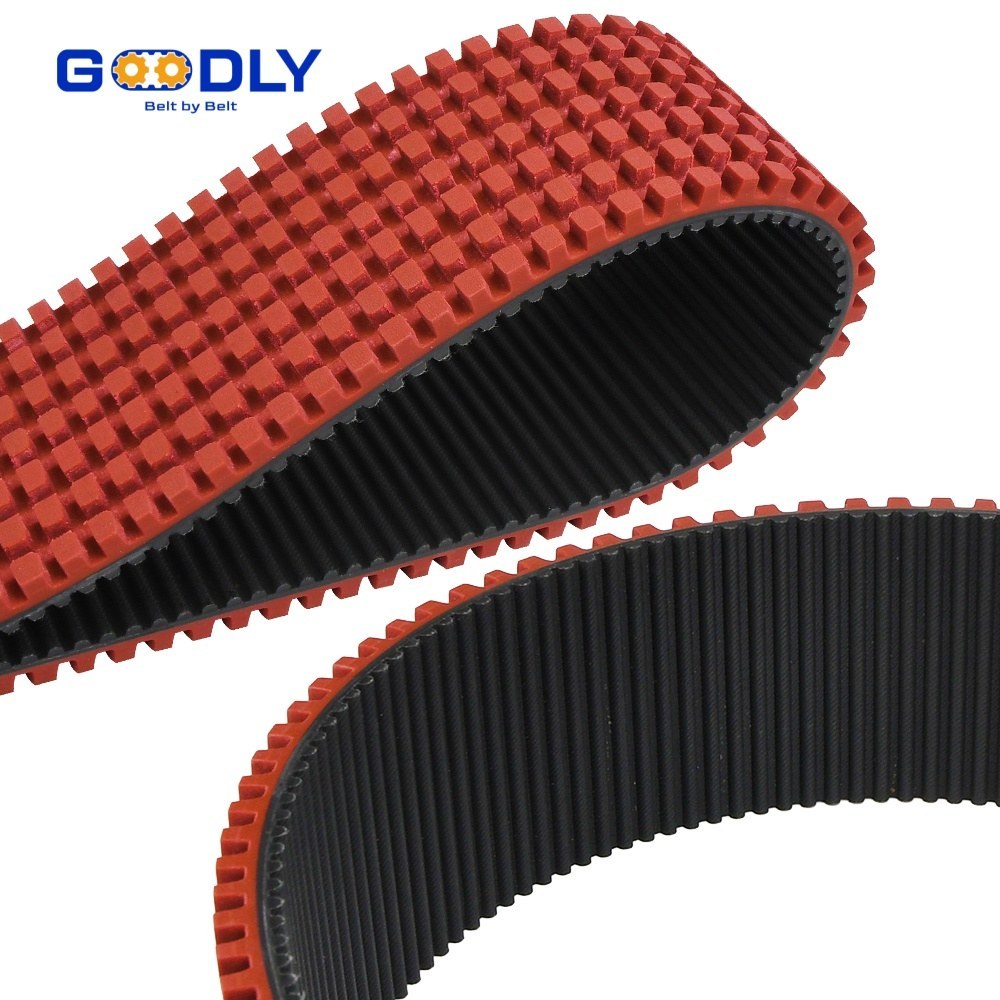

- Machining: V-guides for tracking, cleats and flights for inclines, punched holes and slots for vacuum or fixtures, notches and profiled teeth on the back for double drives.
- Color: colored rubber or PU compounds for line identification and detectability — blue and white are standard in food plants.
Custom Timing Belt Pulleys: Matching Custom Drives End to End
A custom belt only performs as well as the pulleys it runs on, and mismatched pulleys are the top cause of premature failure on custom drives. When you order custom timing belt pulleys together with the belt, the manufacturer takes responsibility for the whole meshing system: pitch and profile match, flange dimensions, bore and keyway, and the correct tooth count for your ratio. Good manufacturers also check timing belt pulley minimum diameters against the belt construction — Kevlar-cored and thick-backed belts need larger pulleys to avoid cord fatigue.
Ordering belt and pulleys from one source has a second benefit: the drawing loop closes faster. Instead of you calculating effective diameter tolerances, the factory models the complete drive and confirms centre distance, tension and tooth engagement before anything is cut. GOODLY supplies machined pulleys in steel and aluminium, with custom bores, keyways, setscrews and taper bushings.
Minimum Quantities, Tooling and Lead Times for Custom Timing Belts
Customization economics differ by route, and knowing them up front prevents sticker shock:
| Route | Typical MOQ | Tooling | First-article lead time |
|---|---|---|---|
| Endless vulcanized from open stock | 1-10 pcs | None (joining dies only) | 3-10 days |
| Endless moulded, custom length | 20-100 pcs | Custom mould required | 2-4 weeks incl. mould |
| Coated / machined belts | 5-50 pcs | Bonding & machining fixtures | 1-3 weeks |
| Custom pulleys | 1-20 pcs | CNC program per design | 1-2 weeks |
Three levers reduce cost and time. Supply the drawing of the old belt or the physical sample — reverse-engineering from a sample is the fastest accurate route. Keep to standard profiles and cords even when the length is custom; exotic combinations multiply mould cost. And separate the first article from the batch order: validate one belt on the machine, then release the volume run with the same process parameters.
How GOODLY Delivers Custom Timing Belts: 48h Drawings and 3-5 Day Samples
GOODLY is a timing belt manufacturer with in-house moulding, vulcanizing, coating and machining, which means the whole custom chain lives under one roof:
48 h quotation
Send a drawing, a sample or drive data; our engineers return a proposal with spec sheet in 48 hours.
3-5 day samples
Sample belts ship in 3-5 working days for vulcanized and coated constructions.
Full modification menu
Custom lengths, all major profiles, rubber / sponge / silicone backings, machining and colors.
Matching pulleys
Custom timing belt pulleys machined to match, delivered as a complete drive set.
Every loop is pitch-checked and the cord tension verified before packing, and food-related projects can be supplied with FDA-compliant backing compounds on request. Explore our timing belts with special machining to see the modification catalog, then send us your drawing.
How do I specify a custom timing belt so nothing gets lost in translation?
Give pitch length (not outer length), pitch and profile family, width, cord type, backing material and thickness, and any machining features. A photo or dimensioned sketch of the old belt plus the installed pulley profile covers nearly everything.
What is the minimum quantity for custom timing belts?
Vulcanized and coated custom belts start at 1-10 pieces because they are made from standard open stock. Fully moulded custom lengths need a mould, so MOQs are higher — typically 20-100 pieces depending on size.
Can you match a belt from a competitor or a broken sample?
Yes. Send the worn belt or its dimensions; we reverse-engineer pitch, profile, cord and construction, confirm the identification with you, and quote within 48 hours.
Can custom timing belts be colored and still be food-safe?
Yes. Blue and white food-grade rubber and PU compounds are standard options; they add line identification and improve foreign-object detectability while meeting food-contact requirements.
