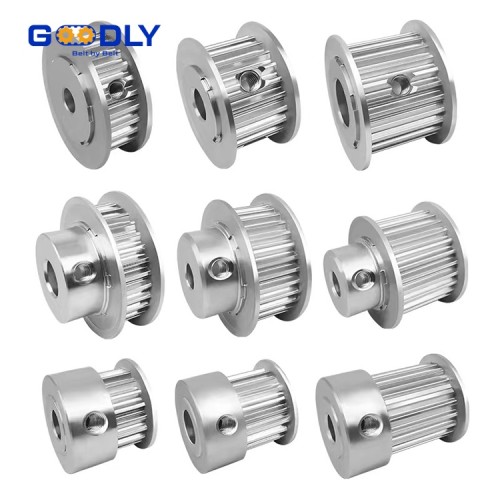

HTD Timing Pulley | 3M 5M 8M 14M | High Torque Drive | Aluminum Pulley | OEM
- Price
- US $6.12-5.65
- MOQ
- 1 piece
Item specifics
- Material
- Aluminum 6061, Steel 1045
- Tooth Profile
- HTD (High Torque Drive)
- Pitch
- 3M, 5M, 8M, 14M
- Face Width
- 6mm to 40mm
- Number of Teeth
- 12T to 120T
- MOQ
- 1 piece
- Warranty
- 1 year
Review
Description
Custom Timing pulley Product Overview
The HTD timing pulley features a curved tooth profile designed for high-torque drive applications.
This design reduces stress on the belt, minimizes noise, and enhances the overall power transmission capacity, making it superior to trapezoidal profiles in demanding environments.
Compatible with 3M, 5M, 8M, and 14M pitch belts, this pulley is widely used in conveyor drives, packaging machinery, and automotive systems.
We provide OEM and ODM manufacturing to produce pulleys with specific tooth counts, bore sizes, and special hub configurations to integrate seamlessly into your heavy-duty equipment.
Why Choose Our Timing pulleyl
High-strength materials and heat treatment options for demanding applications.
Cost-effective solution for reliable high-torque power transmission.
Custom designs available for unique shaft mounting and space constraints.
All HTD pulleys are dynamically balanced for smooth high-speed operation.
Precision molding and machining ensure perfect belt meshing and long life.
Engineering support to help you select the correct HTD pitch and width.
Custom Timing pulley What You Want
| Specification | Details |
| Tooth Profile | GT2, GT3, T5, T10, AT5, AT10, HTD 3M/5M/8M |
| Material | Aluminum 6061, Carbon Steel, Stainless Steel |
| Bore Type | Plain Bore, Setscrew, Keyway + Setscrew |
Flange | Single Flange, Double Flange, Flangeless |
Number of Teeth | 10T to 120T (Customizable) |
FAQ
Q1: What does HTD stand for?
A1: HTD stands for High Torque Drive, a curved tooth profile for greater power transmission.
Q2: How do I choose the right tooth profile?
A2: The pulley's tooth profile must exactly match the timing belt you are using (e.g., GT2 pulley for GT2 belt).
Q3: What is the difference between aluminum and steel pulleys?
A3: Aluminum is lighter and corrosion-resistant, while steel offers higher strength and load capacity.
Q4: Can you make a custom bore size?
A4: Yes, we can machine any bore size, keyway, and setscrew configuration as required.
Q6: Do you provide matching timing belts?
A6: Yes, we are a one-stop shop and can supply the perfectly matched timing belts for our pulleys.
