Rod Type Timing Pulley | Linear Motion Shaft | Aluminum Profile | Customizable
- Price
- US $6.12-5.65
- MOQ
- 1 piece
Item specifics
- Material
- Aluminum 6061, Stainless Steel
- Tooth Profile
- GT2, GT3, MXL, XL, T5, AT5
- Shaft Diameter
- 36mm, 8mm, 10mm, 12mm, Custom
- Shaft Length
- 50mm to 500mm (Customizable)
- Flange Option
- Single Flange, Double Flange
- MOQ
- 1 piece
- Warranty
- 1 year
Review
Description

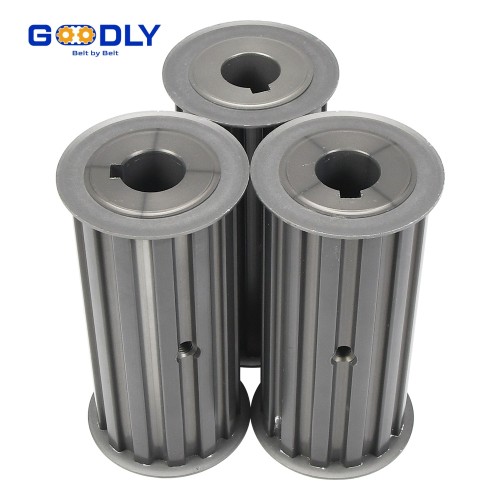

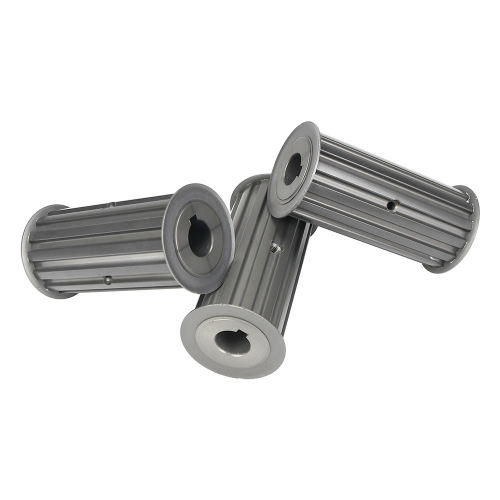

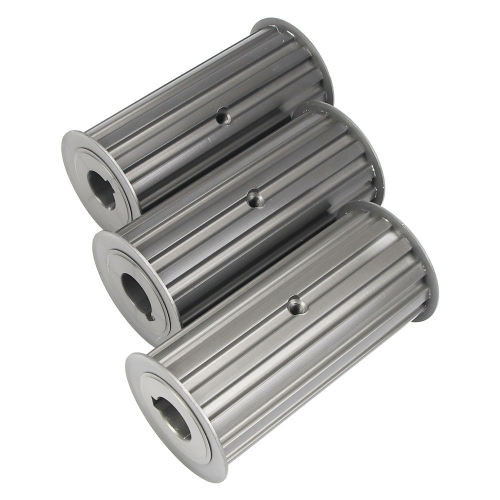

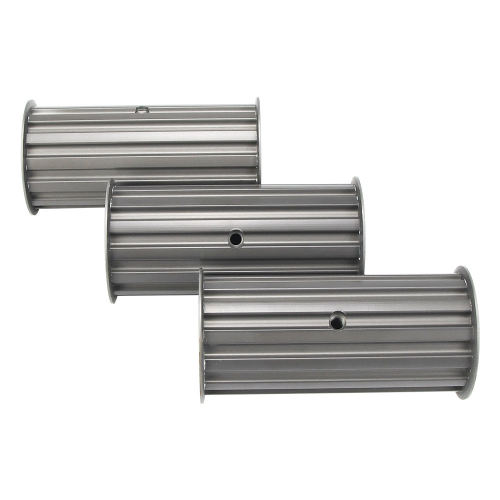

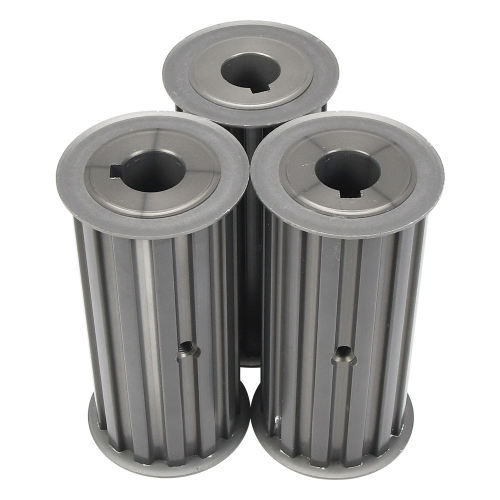

Custom Rod Type Timing Pulley Product Overview
The rod type timing pulley is an innovative integrated component that combines a precision timing pulley with a sturdy shaft in a single unit.
Machined from high-strength aluminum alloy, this design eliminates the need for separate assembly of pulley and shaft, ensuring perfect alignment and significantly reducing installation time.
Ideal for linear motion systems in 3D printers, CNC machines, and automated guided vehicles, it provides a reliable and compact solution for precise synchronous drive applications.
We support OEM and ODM services to customize the shaft diameter, length, tooth profile, and number of teeth to meet your specific mechanical requirements.
Why Choose Our Rod Type Timing Pulley
CNC precision machining guarantees excellent concentricity and low runout.
Cost-effective integrated design reduces parts count and assembly labor.
Full customization of shaft dimensions and pulley specifications available.
Lightweight yet durable construction maintains system efficiency.
Strict quality control on both pulley teeth and shaft dimensions.
Technical support for integrating into linear motion designs.
Custom Rod Type Timing Pulley What You Want
| Specification | Details |
| Tooth Profile | GT2, GT3, MXL, XL, T5, AT5 |
| Material | Aluminum 6061, Stainless Steel |
| Shaft Diameter | 6mm, 8mm, 10mm, 12mm, Custom |
Shaft Length | 50mm to 500mm (Customizable) |
Flange Option | Single Flange, Double Flange |
FAQ
Q1: What is a rod type timing pulley?
A1: It's an integrated component combining a timing pulley and linear shaft into one piece.
Q2: What are the main advantages of this design?
A2: It ensures perfect alignment, reduces assembly time, and provides a more compact design.
Q3: What applications is it best suited for?
A3: Ideal for linear motion systems in 3D printers, CNC routers, and automation equipment.
Q4: Can you customize the shaft diameter and length?
A4: Yes, we can manufacture any shaft diameter and length according to your requirements.
Q5: How is the pulley fixed to prevent rotation on the shaft?
A5: The pulley and shaft are machined as one piece, eliminating relative rotation completely.
Q6: Do you provide matching linear bearings?
A6: While we specialize in the pulley assembly, we can recommend compatible linear bearings.
