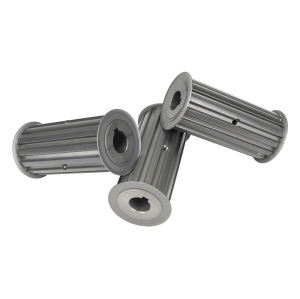

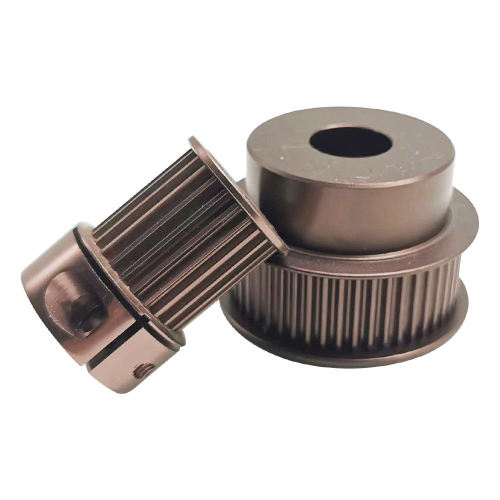

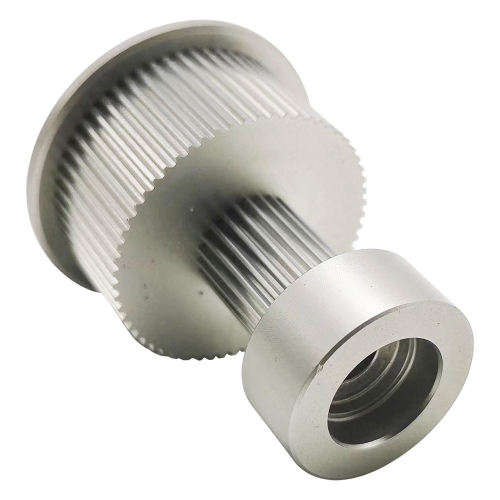

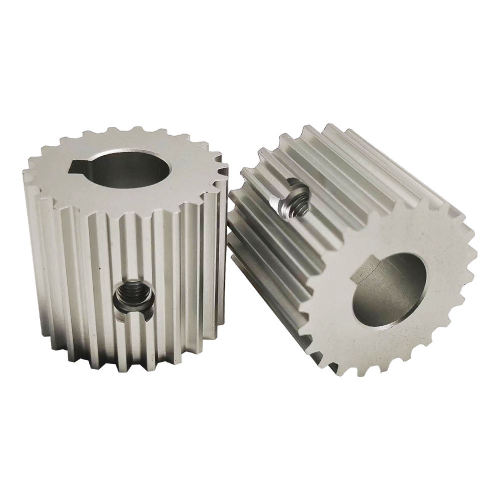

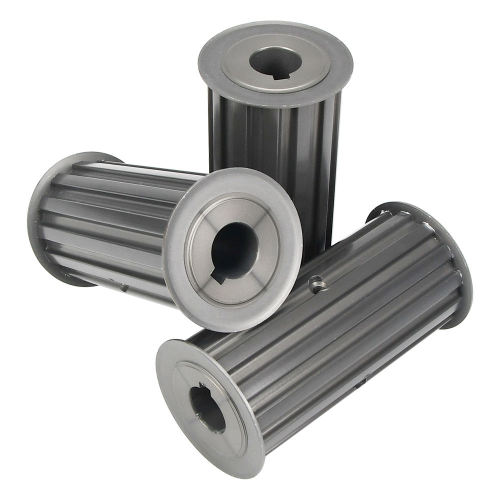

Linear Shaft Timing Pulley | Integrated Design | For 3D Printer | CNC Machine
- Price
- US $6.12-5.65
- MOQ
- 1 piece
Item specifics
- Material
- Aluminum 6061, Stainless Steel
- Tooth Profile
- GT2, GT3, MXL, XL, T5, AT5
- Shaft Diameter
- 36mm, 8mm, 10mm, 12mm, Custom
- Shaft Length
- 50mm to 500mm (Customizable)
- Flange Option
- Single Flange, Double Flange
- MOQ
- 1 piece
- Warranty
- 1 year
Review
Description
Custom Linear Shaft Timing Pulley Product Overview
Our linear shaft timing pulley represents a breakthrough in motion system design by integrating the timing pulley directly onto the linear shaft.
This one-piece construction, precision-machined from aircraft-grade aluminum, guarantees absolute concentricity and eliminates the alignment issues common in traditional two-piece assemblies.
Specifically designed for linear rail systems in high-precision applications like 3D printers, laser cutters, and CNC milling machines, this rod type timing pulley ensures smoother operation, reduced vibration, and enhanced positional accuracy.
Our OEM and ODM capabilities allow for complete customization of shaft hardness, surface finish, and pulley specifications to optimize your machine's performance.
Why Choose Our Linear Shaft Timing Pulley
Aircraft-grade aluminum construction ensures strength and durability.
Integrated design saves cost on separate components and assembly.
Custom tooth profiles and shaft coatings available.
Precision grinding of shaft surfaces for smooth linear motion.
100% tested for runout and dimensional accuracy.
Expert guidance on implementation in linear motion systems.
Custom Linear Shaft Timing Pulley What You Want
| Specification | Details |
| Tooth Profile | GT2, GT3, MXL, XL, T5, AT5 |
| Material | Aluminum 6061, Stainless Steel |
| Shaft Diameter | 6mm, 8mm, 10mm, 12mm, Custom |
Shaft Length | 50mm to 500mm (Customizable) |
Flange Option | Single Flange, Double Flange |
FAQ
Q1: What is a rod type timing pulley?
A1: It's an integrated component combining a timing pulley and linear shaft into one piece.
Q2: What are the main advantages of this design?
A2: It ensures perfect alignment, reduces assembly time, and provides a more compact design.
Q3: What applications is it best suited for?
A3: Ideal for linear motion systems in 3D printers, CNC routers, and automation equipment.
Q4: Can you customize the shaft diameter and length?
A4: Yes, we can manufacture any shaft diameter and length according to your requirements.
Q5: How is the pulley fixed to prevent rotation on the shaft?
A5: The pulley and shaft are machined as one piece, eliminating relative rotation completely.
Q6: Do you provide matching linear bearings?
A6: While we specialize in the pulley assembly, we can recommend compatible linear bearings.
