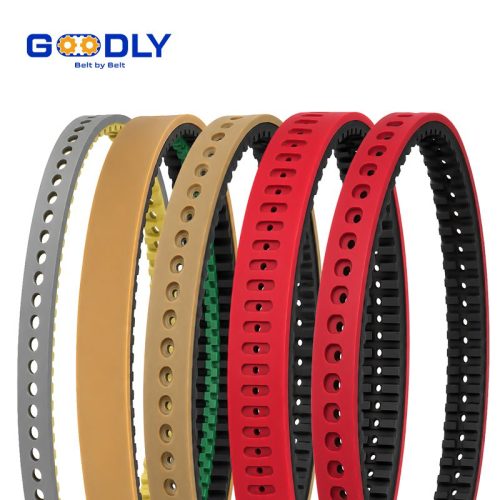

Seamless Vulcanized Timing Belt for Horizontal Flow Wrappers | Endless Rubber Belt Custom Made to Drawing
- Model
- Customized
Item specifics
- Product type
- Vulcanized timing belt, seamless endless
- Application
- Horizontal flow wrapper infeed and sealing drive
- Joint
- No mechanical splice
- Target thickness
- 3.00 mm, other thicknesses to drawing
- Width
- Custom slit to drawing or sample
- Covering
- Rubber covering, custom compound and hardness
- Machining
- Holes, slots, cleats and ground edges on request
- Compliance
- RoHS
- Inspection
- 100% pre-shipment inspection
Review
Description
A flow wrapper runs fast and stops often. Every restart puts a shock load through the belt, and a spliced joint is the first thing that gives way. This belt is vulcanized as one endless loop with a controlled 3.00 mm target thickness, then cut, covered and machined to your drawing. It runs true from the first shift and keeps the film registration where you set it. Most buyers compare belts by price per piece. Packaging lines pay for belts in a different currency: downtime, scrap, and operator time spent re-adjusting. These are the four failures we are asked to fix most often. Film draw-down loses registration, the seal lands off-centre and the jaw crushes product instead of sealing it. A spliced belt opens at the joint, delaminates under tension and fails long before the rubber itself is worn. Width or pitch tolerance off by a fraction is enough to make the belt track off the pulley and wear the flange. Premature wear forces an extra changeover. One hour of lost line output usually costs more than the whole belt order. Six properties that decide how a belt behaves on a horizontal wrapper that starts and stops hundreds of times per shift. No splice means no joint to take the shock load up, which is the usual reason a wrapper belt fails early. Target 3.00 mm with controlled deviation, so the belt tracks straight and does not wander on the pulley. Compound, colour and hardness matched to the product being wrapped, from sticky film to dry biscuits. Cord chosen for your load and elongation requirement, so the belt keeps its length under repeated start-stop cycles. Clean holes and smooth edges for consistent mounting and clean product release. Compliance documentation supplied with the order. The joint is where a conventional endless belt fails first. We build the loop in the mould instead of closing it afterwards, so there is nothing to open up. Send a sample, a drawing or the pulley data. We confirm the matching structure, compound and tolerances before production, so the belt you receive fits on the first try. The complete set of our vulcanized timing belt product photos, in order: collection overview, structure details, customization options and specifications. Typical stations on horizontal packaging equipment where an endless vulcanized belt is specified. Carries product into the film at a fixed pitch, so the wrapper can time the cross seal. Synchronises the sealing head with the product flow for a clean, centred seal. Dry, fragile product that needs a grip surface that will not mark or slip. Supports trays through the sealing station without distortion. Transfers product from the wrapper into the cartoner at a controlled pitch. Stable transfer so weighing and detection stay accurate at speed. Standardized workshop and modern vulcanizing equipment under one roof. Long-term focus on industrial belt selection, matching and supply. Europe, the Americas, the Middle East and Asia, with repeat OEM programmes. Independent development of compounds, structures and core technology. Full-process quality control before anything leaves the plant. Utility model patents and compliance documentation available with your order. Yes. Send a drawing, a sample or the pulley data and we confirm structure, compound and tolerances before production. Our standard target is 3.00 mm, other thicknesses are made to drawing or sample. Yes. Width is slit to your drawing or sample, and endless length is calculated from your pulley centre distance. Because the joint is where a spliced belt cracks and delaminates under repeated start-stop loads. A vulcanized endless loop has no joint to fail. Technical enquiries are answered within 24 hours with a structure and compound recommendation. Tell us the machine, the pitch and the running conditions. We will tell you which structure and compound actually fits, instead of shipping a standard belt and hoping it works.A Seamless Endless Belt for Horizontal Flow Wrappers
Why the Wrong Belt Costs More Than the Belt Itself
Slippage under load
Joint cracking
Size mismatch
Unplanned stoppages
What You Get From This Belt
Seamless vulcanized structure
Accurate thickness control
Custom rubber covering
High-strength tensile core
Precision machining
RoHS compliant
Seamless Vulcanized Structure vs. Visible Joint Connection
Our vulcanized belt
Typical spliced belt
Specification and Customization Range
Product type Vulcanized timing belt, seamless endless construction Joint No mechanical splice, vulcanized endless loop Standard target thickness 3.00 mm, other thicknesses made to drawing Width Custom slit to drawing or sample Length Custom endless length to drawing or pulley centre distance Tensile core High-strength cord, selected for load and elongation requirement Covering Rubber covering, custom compound, colour and hardness Surface pattern Smooth, ground or patterned to suit the product being carried Machining Drilled holes, slots, countersinks, ground edges, cleats on request Compliance RoHS; supporting certificates and test reports supplied with the order Typical applications Horizontal flow wrappers, infeed conveyors, horizontal sealing, tray sealing and cartoning lines Quality control 100% pre-shipment inspection Product Gallery
Where This Belt Runs
Flow wrapper infeed
Horizontal sealing drive
Biscuit and chocolate lines
Tray and lidding lines
Cartoning infeed
Checkweigher and metal detector transfer
What Backs Up Every Belt We Ship
20,000 m2 factory floor area
15+ years on belt solutions
Exported to 60+ countries
Professional R&D team
100% pre-shipment inspection
RoHS and national patents
Frequently Asked Questions
Can you make a belt from my drawing?
What thickness do you supply?
Do you supply custom widths?
Why does the seamless construction matter?
How fast can I get an engineering answer?
Get a Belt Recommendation Before You Buy
